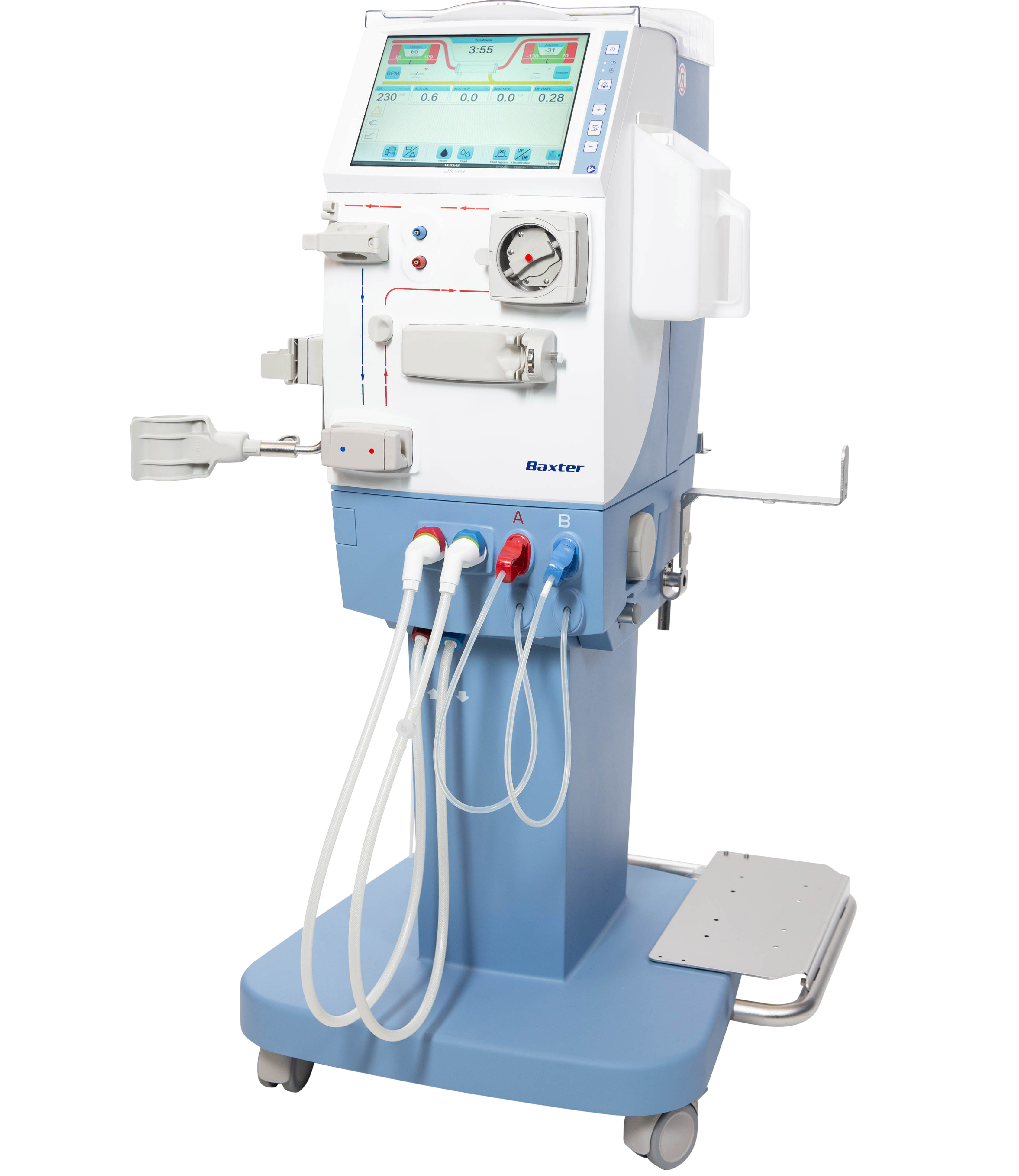

AK 98 Dialysis Machine

Proactive Treatment Reporting & Insight

Built-in programs for monitoring and data analysis help keep prescriptions on target and optimize facility operations.

Diascan provides real time measurement of ionic and forecasted Kt/V helps identify trends in treatment, and alerts to possible deviations

The AK 98 machine can hold approximately 90 treatments worth of data at one time, which can be used to generate clinical and technical reports designed to help:

• Look at ways to improve efficiency
• Establish benchmarks
• Create cost-saving strategies
• Prepare for audits

Intelligent Fluid Management

Developed for cost-savings with a greener footprint

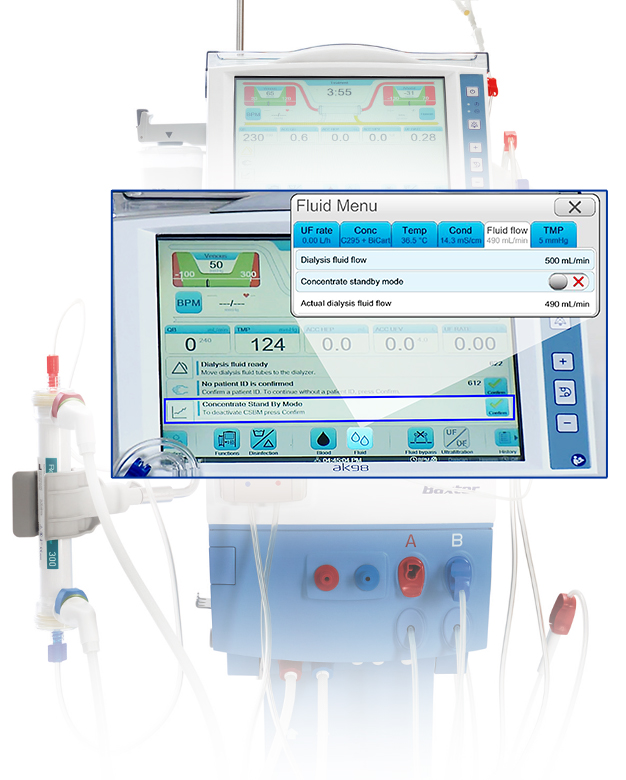

Concentrate Standby Mode uses zero water and concentrate, which could mean annual savings up to $139/machine (500 mL/min start flow)¹

BICART Concentrate Auto-drain makes it simple to drain the water and powder completely for easy recycling after use

Flexible Disinfection Options
Pick the disinfection cycle and options that work best for you: heat, heat citric acid 50%, and short heat citric acid 50%

_{1. Data on file. Baxter Healthcare Corporation.}

NOVALINE Bloodlines – Designed to be
Environmentally Friendly

DEHP-free, so there’s no worry of the plasticizer leaching out over time^1,2

The bloodlines do not use EtO (Ethylene oxide) – sterilization is done through electron beam (e-beam)^3,4

Packaging designed with less plastic for a greener footprint

<sub>1. Data on File. Baxter Healthcare Corporation.
2. Erythropel HC, Milan M, Nicell JA, Leask RL, Yargeau V. Leaching of the plasticizer di (2-ethylhexyl) phthalate (DEHP) from plastic containers and the question of human exposure. Applied microbiology and biotechnology 98, no. 24 (2014): 9967-9981.
3. NOVALINE Tubing Sets for Hemodialysis. Instructions for Use. Bain Medical Equipment (Guangzhou) Co., Ltd.
4. Environmental Protection Agency. (2018). Fact Sheet: EPA Taking Steps to Address Emissions of Ethylene Oxide. Retrieved from https://www.epa.gov/hazardous-air-pollutants-ethylene-oxide/fact-sheet-epa-taking-steps-address-emissions-ethylene-oxide.</sub>

Reduced Hands-on Time

Designed to simplify treatment with fewer steps, the intuitive, app-like interface is easy to learn and use, so your staff can spend more time focused on patient care and overall outcomes.

Customized Presets - With over 130 presets, you choose what’s best for your facility and our technical team will implement them at the time of installation

Bidirectional Connectivity - Pull a prescription from the EMR, potentially reducing errors and saving time from manual entry

SmartSense Alerts – Includes Automatic Alert Resolution, which enables the machine to self-clear nuisance pressure alarms and avoid unnecessary stoppage of treatment due to brief pressure fluctuations often related to patient movement. This helps streamline patient management, including for COVID-19 patients requiring HD treatment, by limiting direct exposure and number of redundant device interventions

Built for Reliability & Reduced Maintenance

The innovative design of the AK 98 Machine includes high-precision ceramic concentrate pumps and electromagnetic flow meters, which means no moving parts and no pH probe needed to calculate flow rate. Maintenance is recommended yearly but only required every other year.

No Separate Cart Needed

The stable base design allows for easy concentrate or portable RO storage and transport with the machine.

NOTE: Water treatment system and Mobility Package accessory tray sold separately.

_{WRO 300 H Water Purification System sold separately by Mar Cor Purification, Inc.}
